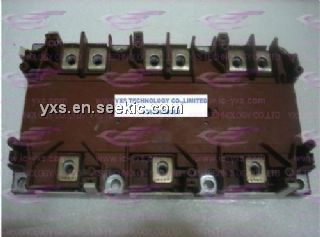

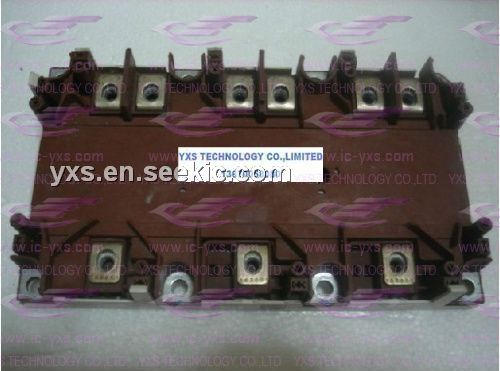

Product Summary

The SKIM450GD126DL is an IGBT Module. The applications of the SKIM450GD126DL include uninterruptable power supplies, three phase inverters for AC motor speed control.

Parametrics

SKIM450GD126DL absolute maximum ratings: (1)VCES: 1200V; (2)IC: 390A; (3)ICRM: 780A; (4)VGES: ±20V; (5)Tj: -40 to 150℃; (6)Tcop: 125℃; (7)Visol: 2500V; (8)IF: 345A; (9)IFRM: 780A; (10)IFSM: 3300A.

Features

SKIM450GD126DL features: (1)Trench gate IGBT with field stop layer; (2)Low inductance case; (3)Fast & soft inverse CAL diodes; (4)Isolated by AI2O3 DCB ceramic plate; (5)Pressure contact technology for thermal contacts; (6)Spring contact system to attach driver PCB to the control terminals; (7)Integrated temperature sensor.

Diagrams

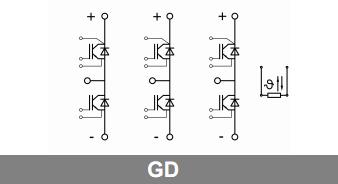

SKIM450GD126DL block diagram
