Product Summary
The SKIM401GD128D is an IGBT Module. The applications of the SKIM401GD128D include Resonant inverters up to 100kHz, inductive heating, electronic welder at fSW > 20kHz.
Parametrics
SKIM401GD128D absolute maximum ratings: (1)VCES: 600V; (2)IC: 420A; (3)ICRM: 840A; (4)VGES: ±20V; (5)TJ: -40 to 150℃; (6)Tcop: 125℃; (7)Visol: 2500V; (8)IF: 390A; (9)IFRM: 840A; (10)IFSM: 4300A.
Features
SKIM401GD128D features: (1)NPT-IGBT with positive temperature coefficient of VCEsat; (2)Short circuit, self limiting to 6×IC; (3)DBC substrate: AI2O3; (4)Corresponds to standards IEC 60721-3-3(humidity) class 3K7IE32 and IEC 68T.1(climate)40/125/56.

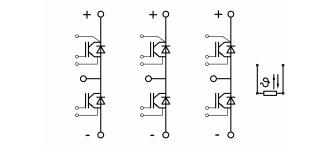

Diagrams
