Product Summary
The PM20CVL060-33 is an Intellimod-3 Module. It is designed for applications requiring a high frequency (20kHz) output switching inverter. The PM20CVL060-33 is isolated from the baseplate, consisting of complete drive, control and protection circuitry for the IGBT inverter. The applications of the PM20CVL060-33 are Inverters, small UPS, Motion/Servo Control, AC motor control.
Parametrics
PM20CVL060-33 absolute maximum ratings: (1)Power Device Junction Temperature: -20℃ to 150℃; (2)Storage Temperature: -40℃ to 125℃; (3)Case Operating Temperature: -20℃ to 100℃; (4)Mounting Torque, M4 Mounting Screws: 0.98 to 1.47Nm; (5)Module Weight (Typical): 60 Grams; (6)Supply Voltage Protected by OC and SC (VD = 13.5V to 16.5V, Inverter Part): 400 Volts; (7)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
PM20CVL060-33 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Current, Over Temperature, Under Voltage.

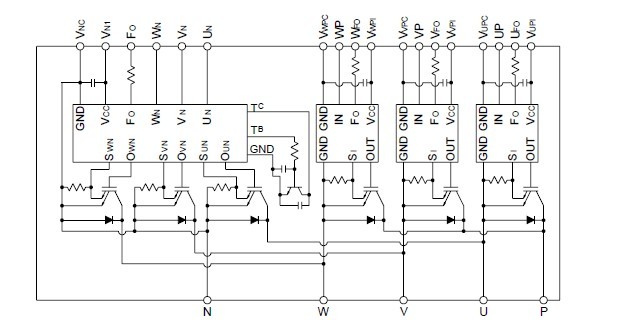

Diagrams
