Product Summary

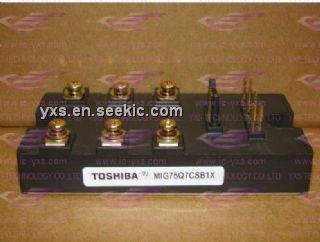

The MIG75Q7CSB1X is an intelligent power module. The device is suitable for high power switching applications and motor control applications.

Parametrics

MIG75Q7CSB1X absolute maximum ratings: (1)Inverter, Supply voltage, VCC: 900 V; Collector-emitter voltage, VCES: 1200 V; Collector current, IC: 75 A; Forward current, IF: 75A; Collector power dissipation, PC: 830 W; (2)Brake, Junction temperature, Tj: 150℃; Supply voltage, VCC: 900 V; Collector-emitter voltage, VCES: 1200 V; Collector current , IC: 40 A; Reverse voltage, VR: 1200V; Forward current, IF: 40A; Collector power dissipation, PC: 500 W; (3)Control, Junction temperature, Tj: 150℃; Control supply voltage, VD: 20 V; Input voltage, VIN: 20 V; Fault output voltage, VFO: 20 V; Fault output current, IFO: 14 mA; (4)Operating temperature, Tc: -20~100℃; (5)Storage temperature range, Tstg: -40~125℃; (6)Isolation voltage, VISO: 2500 V.

Features

MIG75Q7CSB1X features: (1)Integrates inverter, brake power circuits and control circuits (IGBT drive units, protection units for short-circuit current, over current, under voltage and over temperature) in one package; (2)The electrodes are isolated from case; (3)VCE (sat) = 2.2 V (typ.); (4)UL recognized File No. E87989; (5)Weight: 278 g (typ.).

Diagrams

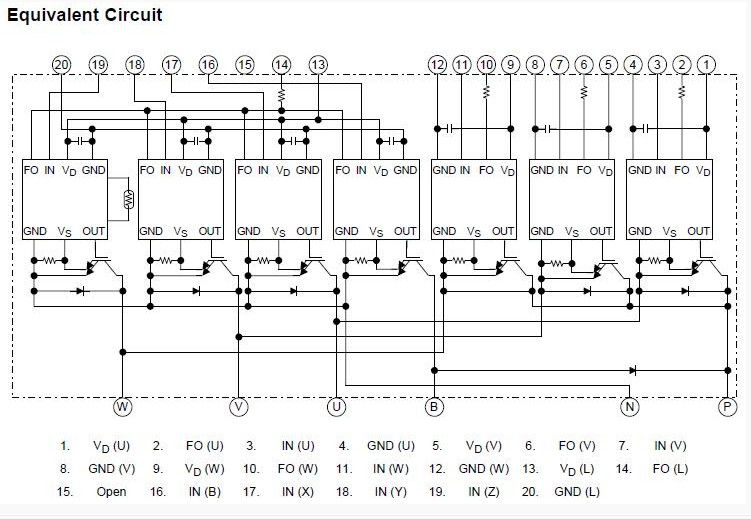

MIG75Q7CSB1X block diagram
