Product Summary

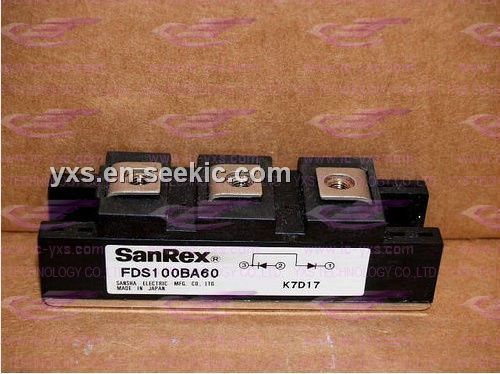

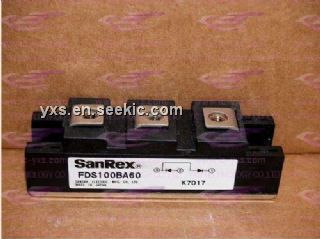

The FDS100BA-60 is a high speed dual diode module designed for high power switching application. The FDS100BA-60 is suitable for high frequency application requiring low loss and high speed control. The applications of the FDS100BA-60 include Switching Power Supply, Inverter Welding Power, Supply, Power Supply for Telecommunication.
Parametrics
FDS100BA-60 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 600V; (2)VR (DC), D.C. Reverse Voltage: 480V; (3)Forward Current,IF, D.C. Tc: 94℃: 100A; (4)FSM, Surge Forward Current, 1/2 cycle, 60HZ, peak value, non-repetitive: 2000 A; (5)I2t, I2t Value for One cycle of surge curent: 16700 A2S; (6)Tj, Operating Junction Temperature: 40 to 150℃; (7)Tstg, Storage Temperature: 40 to 125℃; (8)VISO, Isolation Breakdown Voltage R.M.S. A.C. 1 minute: 2500 V.
Features
FDS100BA-60 features: (1)Voltage Ratings to 1400 Volt; (2)Fully Passivated PIN Chip; (3)Low Leakage, IR < 0.5 μA; (4)Void Less, Particle Free Construction; (5)Hermetic Fused in Glass; (6)Low Loss, Low Distortion; (7)Surface Mount Package Available; (8)Metallurgically Bonded, Thermally Matched Construction; (9)Compatible with automatic insertion equipment.

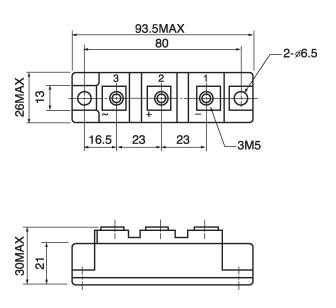

Diagrams
