Product Summary

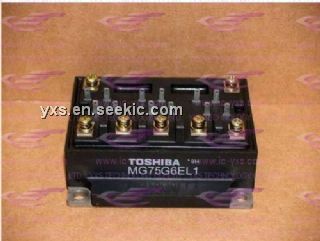

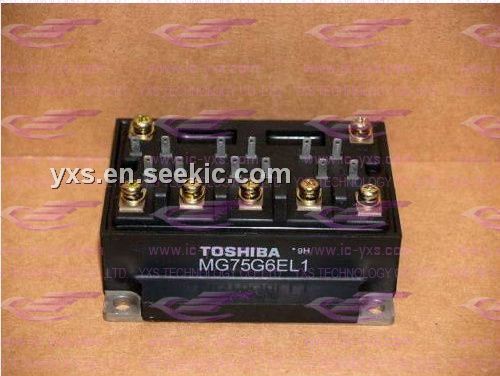

The MG75G6EL1 is a transistor module designed for use in various types of motor control and other high power switching applications and consist of insulated type darlington transistors. The electrodes are fully isolated from heat sink. Single ended electrode construction is used to greatly simplify mounting.

Parametrics

MG75G6EL1 absolute maximum ratings: (1)Max.Tj: 150℃; (2)Storage temperature range: -40 to 125℃; (3)Isolation voltage: 2500V.

Features

MG75G6EL1 features: (1)Electrodes are isolated from the heat sink; (2)High DC current gain; (3)Low saturation voltage; (4)Wide safe operating area.

Diagrams

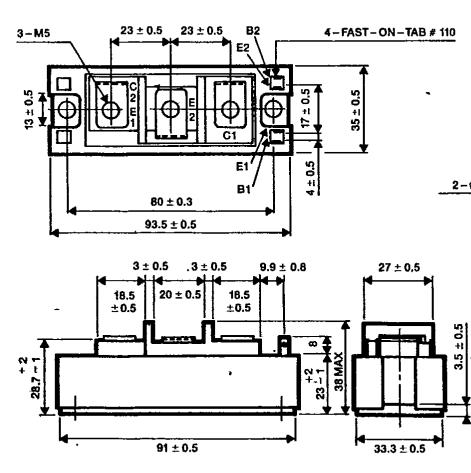

MG75G6EL1 block diagram
