Product Summary
The MG50G2CL3 is an N channel module.
Parametrics
MG50G2CL1 absolute maximum ratings: (1)Drain-source voltage, VDSS: 450V; (2)Gate-source voltage, VGSS: ±20V; (3)Drain current, DC, ID: ±50A; 1MS, ID: ±100A; (4)Drain power dissipation, PD: 400W; (5)Storage temperature range, Tstg: -40 to 125℃; (6)Isiolation voltage, Visol: 2500V.
Features
MG50G2CL1 features: (1)The drain is isolated from case; (2)2 MOSFETs are built-in to 1 package; (3)With built-in free wheeling diode; (4)Low drain-source on resistance: RDS(ON)=0.14Ω; (5)Enhancement-mode.

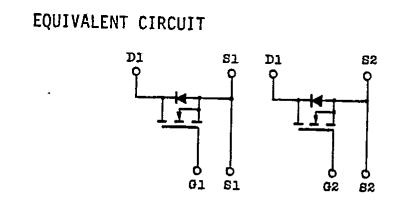

Diagrams
