Product Summary

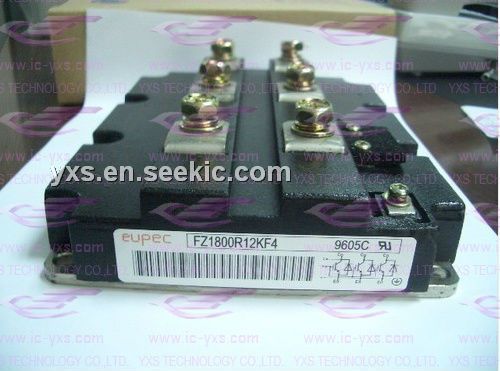

The FZ1800R12KF4 is an IGBT module.

Parametrics

FZ1800R12KF4 absolute maximum ratings: (1)Kollektor-Emitter-Sperrspannung collector-emitter voltage, VCES: 1200 V; (2)Kollektor-Dauergleichstrom, TC = 80℃, IC,nom: 1800 A; (3)DC-collector current TC = 25℃, IC: 1200 A; (4)Periodischer Kollektor Spitzenstrom repetitive peak collector current tP = 1 ms, TC = 80℃, ICRM: 3600 A; (5)Gesamt-Verlustleistung total power dissipation, TC=25℃, Transistor, Ptot: 11 kW; (6)Gate-Emitter-Spitzenspannung gate-emitter peak voltage, VGES: ±20V; (7)Dauergleichstrom DC forward current, IF: 1800 A; (8)Periodischer Spitzenstrom repetitive peak forw. current, tP = 1 ms, IFRM: 3600 A; (9)Isolations-Prefspannung insulation test voltage RMS, f = 50 Hz, t = 1 min., VISOL: 2.5KV.

Features

FZ1800R12KF4 features: (1)Kollektor-Emitter Satigungsspannung collector-emitter saturation voltage IC = 1800 A, VGE = 15V, Tvj = 25℃, VCE sat: 3.2 V; (2)IC = 1800 A, VGE = 15V, Tvj = 125℃ VCE sat: 3.9 V; (3)Gate-Schwellenspannunggate threshold voltage IC = 72 mA, VCE = VGE, Tvj = 25℃, VGE(th): 4,5 5,5 6,5 V; (4)Eingangskapazita input capacitance f = 1MHz, Tvj = 25℃, VCE = 25V, VGE = 0V, Cies: 135 nF.

Diagrams

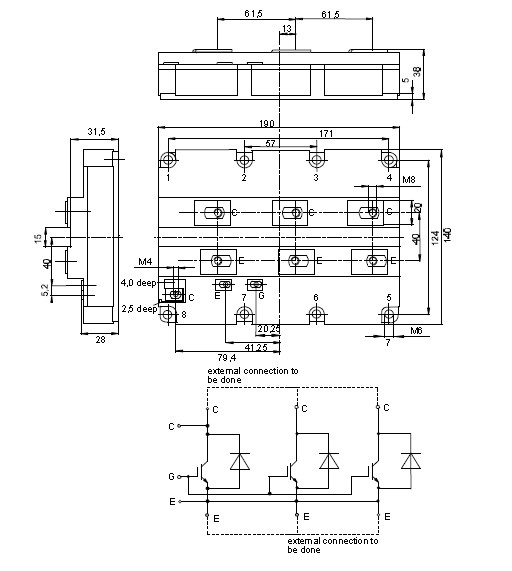

FZ1800R12KF4 block diagram
