Product Summary
The FS50R12KE3 is an IGBT Module.
Parametrics
FS50R12KE3 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 50A/75A; (3)repetitive peak collector current: 100A; (4)total power dissipation: 270W; (5)gate-emitter peak voltage: ±20V; (6) DC forward current: 50A; (7) repetitive peak forward current: 100A; (8) insulation test voltage: 2.5kV.
Features
FS50R12KE3 features: (1)Compact Design; (2)Solder Contact Technology; (3)Rugged mounting due to integrated mounting clamps.

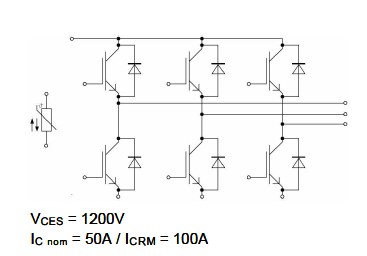

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() FS50R12KE3 |
![]() Infineon Technologies |
![]() IGBT Modules 1200V 50A 3-PHASE |
![]() Data Sheet |
![]()
|
|
||||||||||
