Product Summary
The FS300R12KE3-S1 is an IGBT module and EmCon High Efficiency diode.
Parametrics
FS300R12KE3-S1 absolute maximum ratings: (1)Collector emitter voltage, Tvj= 25℃, VCES: 1200V; (2)DC-collector current: Tc= 80℃, Tvj= 150℃, ICnom: 450A; Tc= 25℃, Tvj= 150℃, IC: 600A; (3)Repetitive peak collector current, tp= 1ms, ICRM: 900A; (4)Total power dissipation, Tc= 25℃, Tvj= 150℃, Ptot: 2100W; (5)Gate-emitter peak voltage, VGES: ±20V.
Features
FS300R12KE3-S1 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

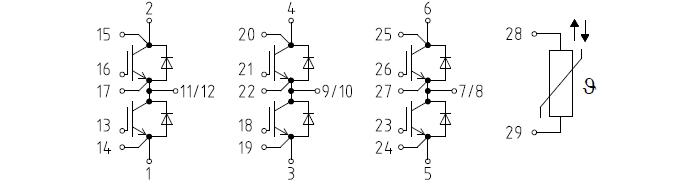

Diagrams
