Product Summary
The FS150R12KE3 is an IGBT module.
Parametrics
FS150R12KE3 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 150A or 200A; (3)repetitive peak collector current: 300A; (4)total power dissipation: 695W; (5)gate-emitter peak voltage: ±20V
Features
FS150R12KE3 features: (1)gate threshold voltage:5.0V to 6.5V; (2)gate charge: 1.40uC; (3)inernal gate resistor: 1.3Ω; (4)input capacitance: 10.5nF; (5)reverse transfer capacitance: 0.50nF; (6)collector-emitter cut-off current: 5.0mA; (7)gate-emitter leakage current: 40nA; (8)turn-on energy loss per pulse: 11.0mJ; (9)turn-off energy loss per pulse: 24.0mJ; (10)SC data: 600A; (11)thermal resistance, junction to case: 0.18K/W; (12)thermal resistance, case to heatsink: 0.046K/W.

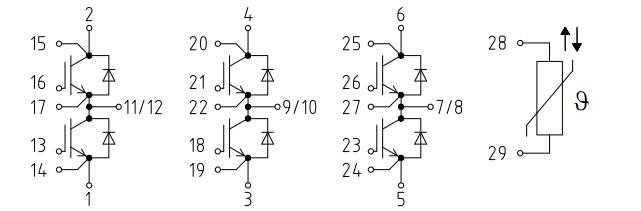

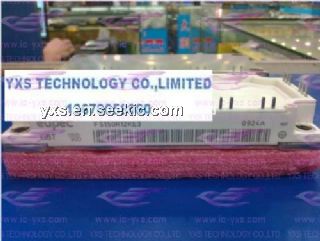

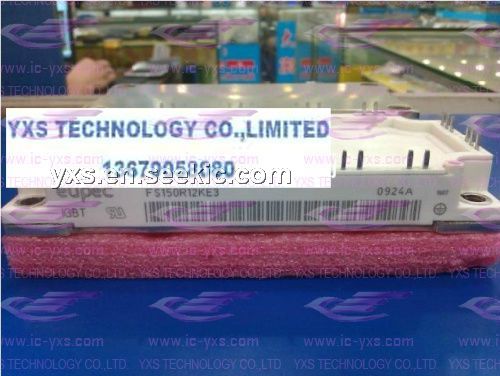

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FS150R12KE3 |
Infineon Technologies |
IGBT Modules 1200V 150A FL BRIDGE |
Data Sheet |
|
|
||||||||||
|
FS150R12KE3G |
Infineon Technologies |
IGBT Modules 1200V 150A 3-PHASE |
Data Sheet |
|
|
||||||||||
