Product Summary
The FM50DY-10 is a precision CMOS temperature sensor. It is cost-effective for accurate low-power temperature monitoring applications. Output voltage versus temperature is extremely linear. With no load, the supply current is typically 130uA. For normal operation, the load on VOUT should be 100KΩ or less. The applications of the FM50DY-10 are Mobile Phones, Computers, Battery Management, Office Equipment, HVAC, Power Supply Modules, Disk Drives, Automotive.
Parametrics
FM50DY-10 absolute maximum ratings: (1)Supply Voltage: +7 V; (2)Output Voltage: VDD + 0.5 V; (3)Output Current: 10 uA; (4)Operating Temperature Range: -50 to +150℃; (5)Storage Temperature Range: -60 to +150℃; (6)Lead Soldering Temperature: 220℃.
Features
FM50DY-10 features: (1)Analog output: 10 mV/℃; (2)Range: -40 to 125℃ range; (3)Accuracy: ±2℃ at 25℃; (4)Supply Current, 170 μA max; (5)Output Drive, 25 μA ; (6)Self-heating < 0.1℃; (7)Operating Voltage: +2.4V to +6V.

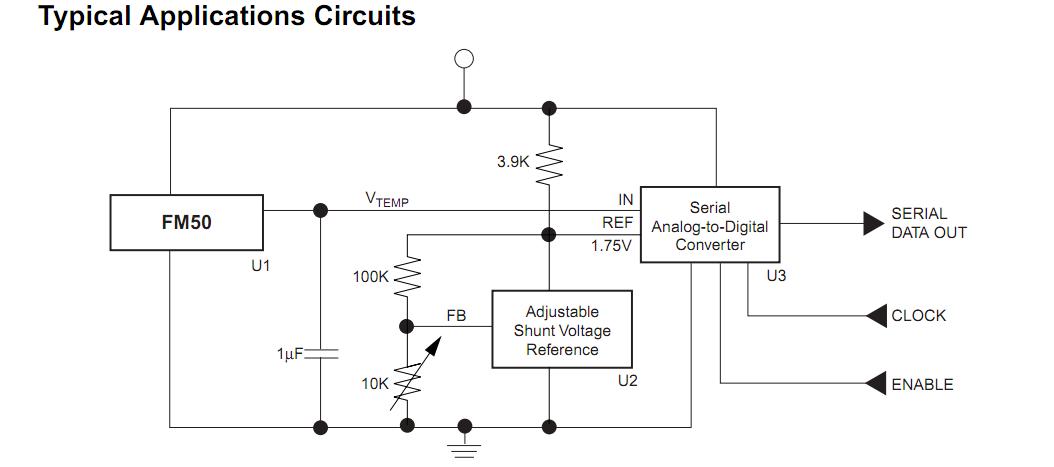

Diagrams
