Product Summary

The FD200R12KE3 is a 62mm C-series module.

Parametrics

FD200R12KE3 absolute maximum ratings: (1)collector-emitter voltage: 1200 V at Tvj=25℃; (2)DC-collector current: 200 A at Tc=65℃, Tvj=150℃, 295 A at Tc=25℃, Tvj=150℃; (3)repetitive peak collector current: 400 A; (4)total power dissipation: 1050 W at Tc=25℃, Tvj=150℃; (5)gate-emitter peak voltage: +/-20 V.

Features

FD200R12KE3 features: (1)forward voltage: 1.65 to 2.15V; (2)peak reverse recovery current: 210A; (3)recovered charge: 30μC; (4)reverse recovery energy: 14 mJ; (5)thermal resistance, junction to case: 0.15K/W.

Diagrams

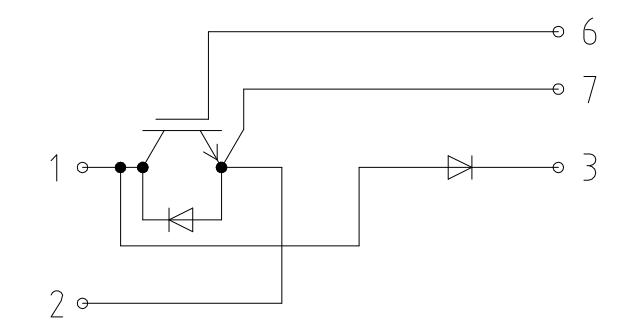

FD200R12KE3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FD200R12KE3
FD200R12KE3
Infineon Technologies
IGBT Modules 1200V 200A CHOPPER
Data Sheet
0-1: $77.87
1-10: $70.09
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FD200R12KE3
FD200R12KE3
Infineon Technologies
IGBT Modules 1200V 200A CHOPPER
Data Sheet
0-1: $77.87
1-10: $70.09
