Product Summary

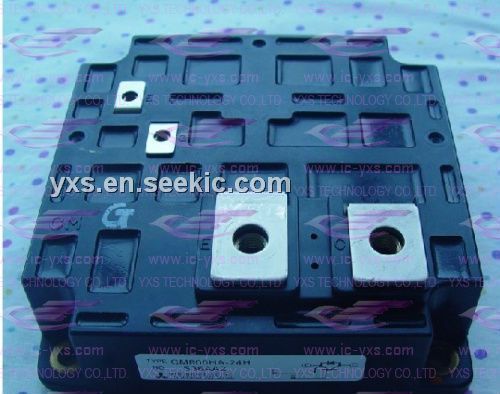

The CM800HA-24E is an IGBT module. It is designed for use in switching applications. The CM800HA-24E consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM800HA-24E are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM800HA-24E absolute maximum ratings: (1)Junction Temperature: -40 to +150℃; (2)Storage Temperature: -40 to +125℃; (3)Collector-Emitter Voltage (G-E SHORT): 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current: 800 Amperes; (6)Peak Collector Current: 1600 Amperes; (7)Emitter Current: 800 Amperes; (8)Peak Emitter Current: 1600 Amperes; (9)Maximum Collector Dissipation: 4800 Watts; (10)Mounting Torque, M8 Main Terminal: 8.83 to 10.8 N·m; (11)Mounting Torque, M6 Mounting: 1.96 to 2.94 N·m; (12)Mounting Torque, M4 Terminal: 0.98 to 1.47 N·m; (13)Weight: 1600 Grams; (14)Isolation Voltage (Main terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
CM800HA-24E features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy; (6)Heat Sinking.

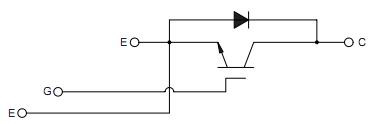

Diagrams
