Product Summary

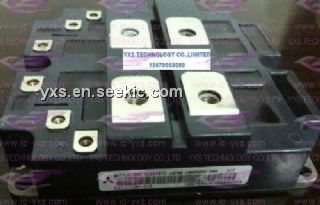

The CM800DZ34H is an IGBT module. It is designed for use in switching applications. The applications of the CM800DZ34H are Traction drives, High reliability converters, DC choppers.

Parametrics

CM800DZ34H absolute maximum ratings: (1)Junction Temperature: –40 to +150℃; (2)Storage Temperature: –40 to +125℃; (3)Collector-Emitter Voltage (G-E SHORT): 1700 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current: 800 Amperes; (6)Peak Collector Current: 1600 Amperes; (7)Emitter Current: 800 Amperes; (8)Peak Emitter Current: 1600 Amperes; (9)Maximum Collector Dissipation: 6200 Watts; (10)Isolation Voltage (Main terminal to Baseplate, AC 1 min.): 4000 Vrms.

Features

CM800DZ34H features: (1)IC: 800A; (2)VCES: 1700V; (3)Insulated Type; (4)2-element in a Pack; (5)AISiC Baseplate.

Diagrams

CM800DZ34H block diagram
