The CM75E3U-24F is an IGBT module. The application of the device includes Brake.
Parametrics
CM75E3U-24F absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1200V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, DC, TC=87℃, IC: 75A; pulse, ICM: 150A; (4)Emitter current, IE: 75A; Pulse, IEM: 150A; (5)Maximum collector dissipation, TC = 25℃, PC: 450W; (6)Junction temperature, Tj: -40 to +150℃; (7)Storage temperature, Tstg: -40 to +125℃; (8)Isolation voltage, Viso: 2500 Vrms.
Features
CM75E3U-24F features: (1)IC: 75A; (2)VCES: 1200V; (3)Insulated Type; (4)1-element in a pack.

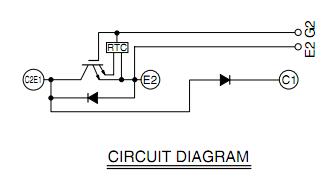

Diagrams
