Product Summary
The CM50TU-24F is an IGBT module. The applications of the CM50TU-24F include General purpose inverters & Servo controls, etc.
Parametrics
CM50TU-24F absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, IC: 50A; ICM: 100A; (4)Emitter current, IE: 50A; IEM: 100A; (5)Maximum collector dissipation, PC: 320W; (6)Junction temperature, Tj: -40 to 150℃; (7)Storage temperature, Tstg: -40 to 125℃; (8)Isolation voltage, Visol: 2500V.
Features
CM50TU-24F features: (1)IC: 50A; (2)VCES: 1200V; (3)Insulated Type; (4)6-elements in a pack.

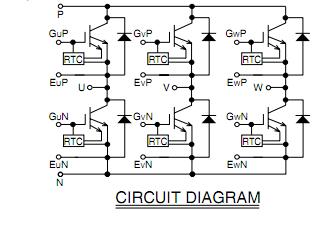

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

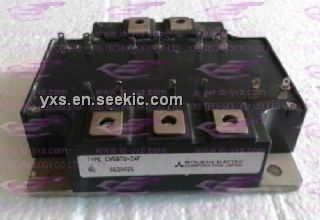

![]() CM50TU-24F |
![]() |
![]() IGBT MOD 6PAC 1200V 50A F SER |
![]() Data Sheet |
![]()
|
|
||||||
