Product Summary

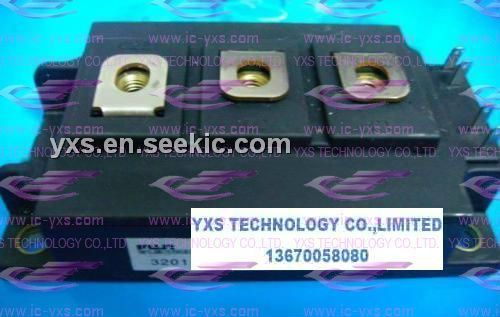

The CM400HA-20F is a Mitsubishi IGBT Module designed for use in switching applications. Each module consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of the CM400HA-20F are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM400HA-20F include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM400HA-20F absolute maximum ratings: (1)Junction Temperature: -40 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT): 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current (Tc = 25℃): 400 Amperes; (6)Peak Collector Current: 800 Amperes; (7)Emitter Current (Tc = 25℃): 400 Amperes; (8)Peak Emitter Current: 800 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃, Tj ≤ 150℃): 2800 Watts; (10)Mounting Torque, M5 Main Terminal: 1.96 to 2.94 N·m; (11)Mounting Torque, M6 Mounting: 1.96 to 2.94 N·m.
Features
CM400HA-20F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
Diagrams
