Product Summary

The CM200TU-12F is an IGBT module. It is suitable for general purpose inverters & Servo controls, etc.

Parametrics

CM200TU-12F absolute maximum ratings: (1)VCES, collecotor-emitter voltage: 600V when G-E short; (2)VGES, gate-emitter voltage: ±20V when C-E short; (3)Tj, junction temperature: -40~+150℃; (4)Tstg, storage temperature: -40~+125℃; (5)Viso, isolation voltage: 2500V when main terminal to base plate, AC 1min.

Features

CM200TU-12F features: (1)IC: 200A; (2)VCES: 600V; (3)Insulated Type; (4)6-elements in a pack.

Diagrams

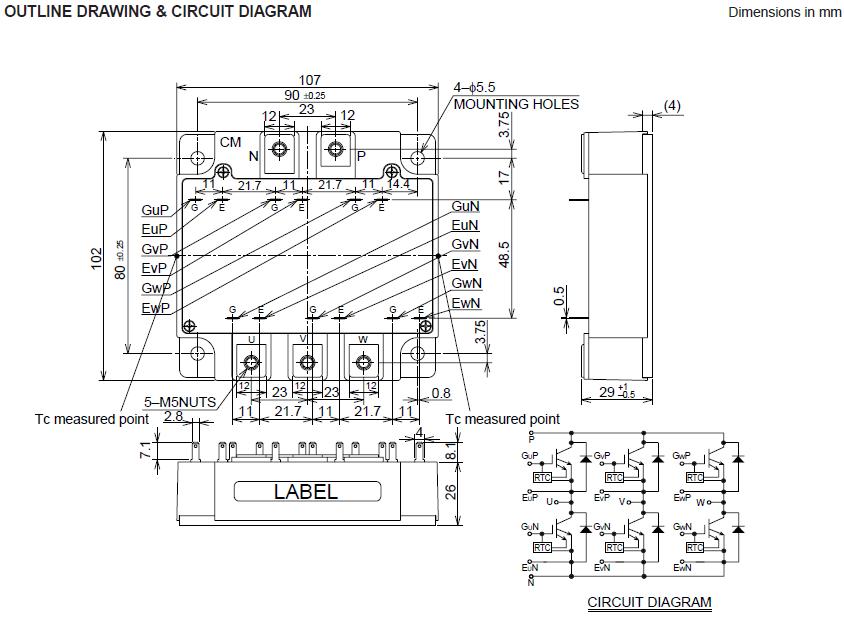

CM200TU-12F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM200TU-12F
CM200TU-12F


IGBT MOD 6PAC 600V 200A F SER

Data Sheet
