Product Summary

The CM200E3U-12H is an IGBT module. The application of the CM200E3U-12H includes Brake.

Parametrics

CM200E3U-12H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600 V; (2)Gate-emitter voltage: ±20 V; (3)Collector current, IC: 200 A at TC = 25℃; ICM: 400 A at Pulse; (4)Emitter current, IE: 200 A at TC = 25℃; IEM: 400 A at Pulse; (5)Maximum collector dissipation: 650 W at TC = 25℃; (6)Junction temperature: -40 to +150 ℃; (7)Storage temperature: -40 to +125 ℃; (8)Isolation voltage: 2500 Vrms at Terminals to base plate, f = 60Hz, AC 1 minute.

Features

CM200E3U-12H features: (1)IC: 200A; (2)VCES: 600V; (3)Insulated Type; (4)1-element in a pack.

Diagrams

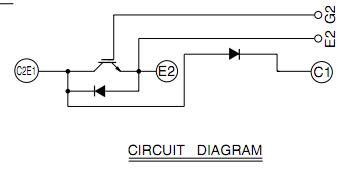

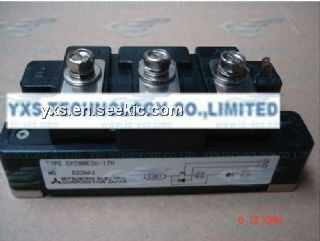

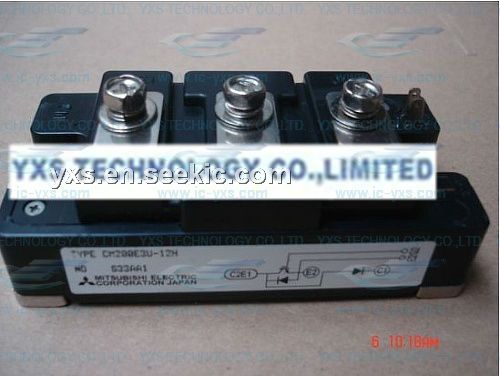

CM200E3U-12H block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM200E3U-12H
CM200E3U-12H

IGBT MOD CHOP 600V 200A U SER
Data Sheet
