Product Summary
The 1DI300M-140 is a power transistor module. The applications of the 1DI300M-140 include general purpose inverter, uninterruptible power supply, servo&spindle drive for NC machine tools, robotics, switching power supplies for welding machines.
Parametrics
1DI300M-140 absolute maximum ratings: (1)VCBO: 1200V; (2)VCEO: 1200V; (3)VCEO(SUS): 900V; (4)VEBO: 10V; (5)TJ: 150℃; (6)TSTG: -40 to 125℃; (7)VISOL: 2500V.
Features
1DI300M-140 features: (1)High arm short circuit capability; (2)High DC current gain; (3)Includinbg free wheeling diode; (4)Insulated type.

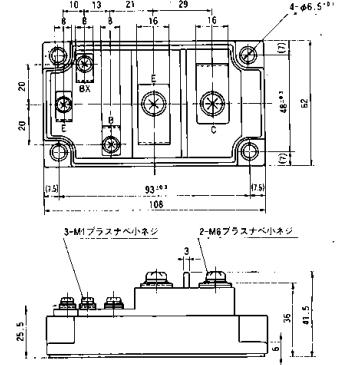

Diagrams
