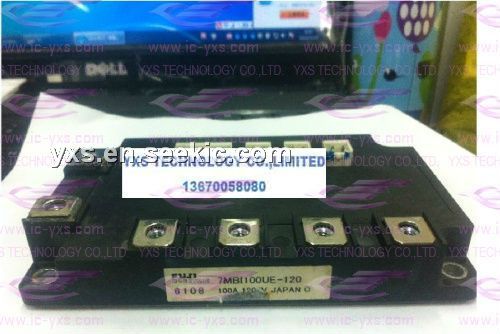

The 7MBI100UE-120 is an IGBT module.
Parametrics
7MBI100UE-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 600V; (2)Gate -Emitter Voltage: ±20V; (3)Collector Current: 100A; (4)Collector Power Dissipation: 320W; (5)Repetitive Peak Reverse Voltage: 600V; (6)Average Forward Current: 1A; (7)Surge Current: 50A; (8)Operating Junction Temperature: +150℃; (9)Storage Temperature: -40℃ to +125℃; (10)Isolation Voltage: 2500V; (11)Mounting Screw Torque: 3.5Nm; (12)Terminal Screw Torque: 3.5Nm.
Features
7MBI100UE-120 features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function( ~ 3 Times Rated Current ).
