Product Summary

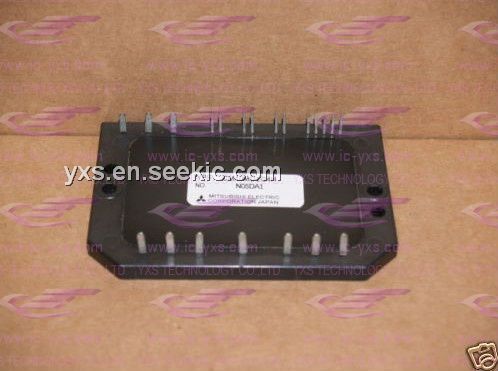

The CM10MD1-24H is a Powerex CI Module designed for use in switching applications. Each module consists of a three phase diode converter section and a three phase IGBT inverter section. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM10MD1-24H include AC Motor Control, Motion/Servo Control, General Purpose Inverters, Robotics.
Parametrics
CM10MD1-24H absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Mounting Torque, M4 Mounting Screws: 13 in-lb; (4)Module Weight (Typical): 60 Gram; (5)Isolation Voltage, AC 1 minute, 60Hz, VRMS: 2500 Volts; (6)Repetitive Peak Reverse Voltage, VRRM: 1600 Volts; (7)Recommended AC Input Voltage, Ea: 440 Volts; (8)DC Output Current, IO: 10 Amper; (9)Surge (Non-repetitive) Forward Current, IFSM: 100 Amper; (10)I2t for Fusing, I2t: 42 A2s.
Features
CM10MD1-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery (70ns) Free-Wheel Diodes; (4)High Frequency Operation (20-25 kHz); (5)Isolated Baseplate for Easy Heat Sinking.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM10MD1-24H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
