Product Summary

The BSM50GAL120D is an IGBT Power Module.

Parametrics

BSM50GAL120D absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage, VCGR: 1200V; (3)Gate-emitter voltage, VGE: ± 20V; (4)DC collector current, IC: 50A; (5)Pulsed collector current, ICpuls: 100A; (6)Power dissipation, Ptot: 400W; (7)Chip temperature, Tj: + 150℃; (8)Storage temperature, Tstg: -40 to + 125℃.

Features

BSM50GAL120D features: (1)Single switch with chopper diode at collector; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

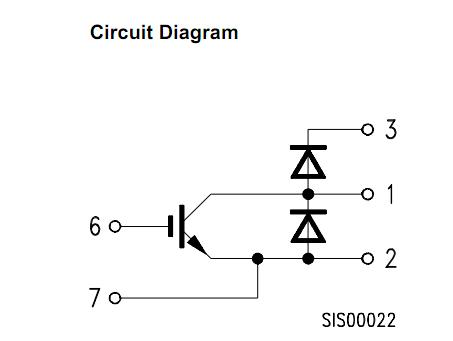

BSM50GAL120D block diagram
