Product Summary
The UM75CDY10 is a power pin diode. The UM75CDY10 features Microsemi’s innovative passivated chip design which takes advantage of the latest silicon wafer bonding and junction passivation techniques. This new series of PIN diodes incorporates all of the desirable RF properties of previous Microsemi diodes plus extremely low leakages and very stable reverse characteristics. The applications of the UM75CDY10 include Isolated stud package available, Surface mount package available RoHS compliant packaging, available: use UMX7501B, etc.
Parametrics
UM75CDY10 absolute maximum ratings: (1)25℃ Pin Temperature, PD: 10 W; 15℃/W; (2)1/2 in. total length to 25℃ Contact Free Air: 5.5 W; 27.5℃/W; (3)Operating and storage temperature range: -65 to + 175℃.
Features
UM75CDY10 features: (1)Voltage Ratings to 1400 Volt; (2)Fully Passivated PIN Chip; (3)Low Leakage, IR < 0.5 μA; (4)Void Less, Particle Free Construction; (5)Hermetic Fused in Glass; (6)Low Loss, Low Distortion; (7)Surface Mount Package Available; (8)Metallurgically Bonded, Thermally Matched Construction; (9)Compatible with automatic insertion equipment.

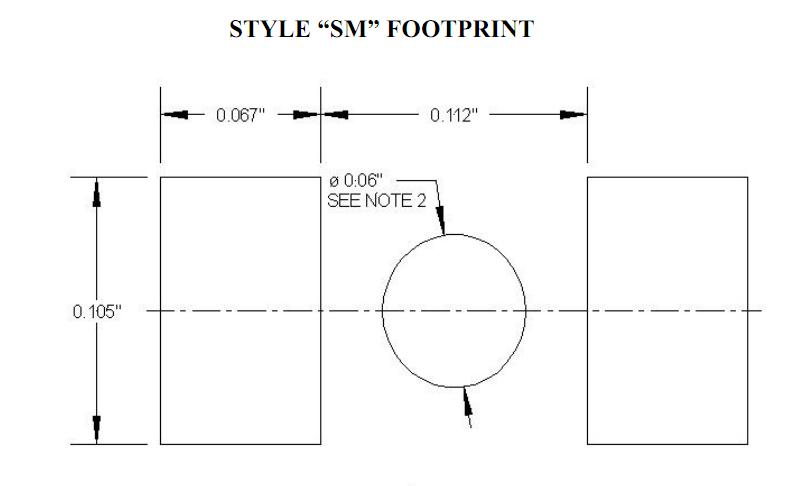

Diagrams
