Product Summary

The BSM200GB60DLC is an IGBT-Module.

Parametrics

BSM200GB60DLC absolute maximum ratings: (1)collector-emitter voltage VCES: 600 V; (2)IC,nom.: 200 A; (3)DC-collector current IC: 230 A; (4)repetitive peak collector current ICRM: 400 A; (5)total power dissipation Ptot: 730 W; (6)gate-emitter peak voltage VGES: +/- 20 V.

Features

BSM200GB60DLC features: (1)VF: 1,25 to 1,6 V; (2)forward voltage: 1,20 V; (3)IRM: 154 A; (4)peak reverse recovery current: 188 A; (5)Qr: 12.1 μC; (6)recoverred charge: 19.7 μC; (7)reverse recovery energy Erec: 4.1 mJ.

Diagrams

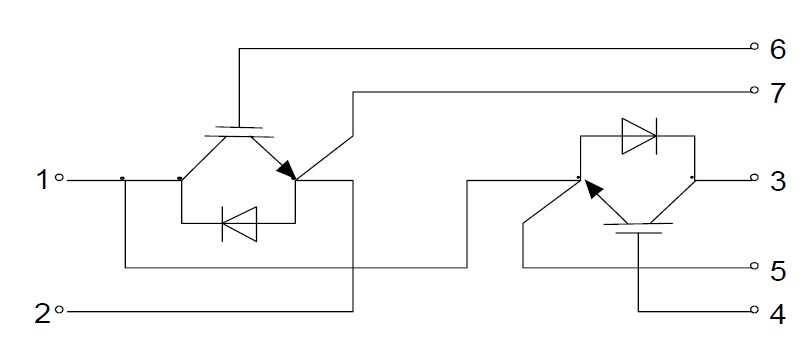

BSM200GB60DLC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BSM200GB60DLC
BSM200GB60DLC

Infineon Technologies

IGBT Modules 600V 200A DUAL

Data Sheet

0-1: $41.31
1-10: $37.10
