Product Summary

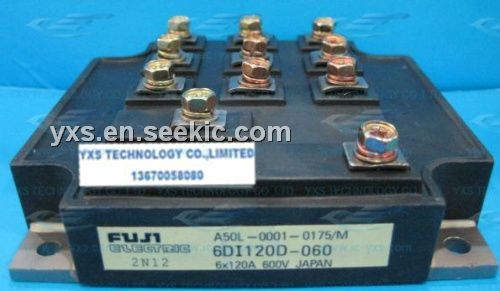

The A50L-0001-0175-M is a power transistor module. The applications of the A50L-0001-0175-M are: power switching, motor brake in inverter.

Power - Max:432000W
Voltage - Collector Emitter Breakdown (Max):600V

Parametrics

A50L-0001-0175-M absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VEBO: 10V; (4)IC: 30A; (5)ICP: 60A; (6)IB: 1.8A; (8)IBP: 3.6A; (9)PC: 200W; (10)Tj: +150℃; (11)Tstg: -40 to +125℃; (12)m: 100g; (13)Viso: 2500V; (14)Mounting: 3.5Nm.

Features

A50L-0001-0175-M features: (1)High DC current gain; (2)High speed switching; (3)Insulated Type.

Diagrams

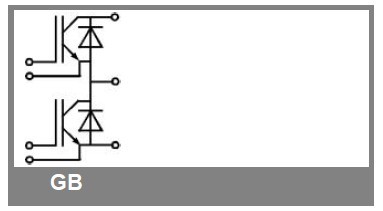

A50L-0001-0175-M block diagram
