Product Summary
The 7MBR75SB060B is an IGBT module. It is suitable for Inverter for motor drive, AC and DC servo drive amplifier and Uninterruptible power supply.
Parametrics
7MBR75SB060B absolute maximum ratings: (1)inverter, Collector-Emitter voltage, VCES: 600V; Gate-Emitter voltage, VGES: ±20V; Collector current, IC: 75A; ICP: 150A; -IC: 75A; Collector power dissipation, PC: 300W; (2)brake, Collector-Emitter voltage, VCES: 600V; Gate-Emitter voltage, VGES: ±20V; Collector current, IC: 50A; ICP: 100A; Collector power dissipation, PC: 200W; Repetitive peak reverse voltage, VRRM: 600V; (3)converter, Repetitive peak reverse voltage, VRRM: 800V; Average output current, IO: 75A; Surge current (Non-Repetitive), IFSM: 525A; I2t: 1378 A2s; (4)Operating junction temperature, Tj: 150℃; (5)Storage temperature, Tstg: -40 to 125℃; (6)Isolation between terminal and copper base, Viso: 2500V; (7)voltage between thermistor and others: 2500V; (8)Mounting screw torque: 3.5Nm.
Features
7MBR75SB060B features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

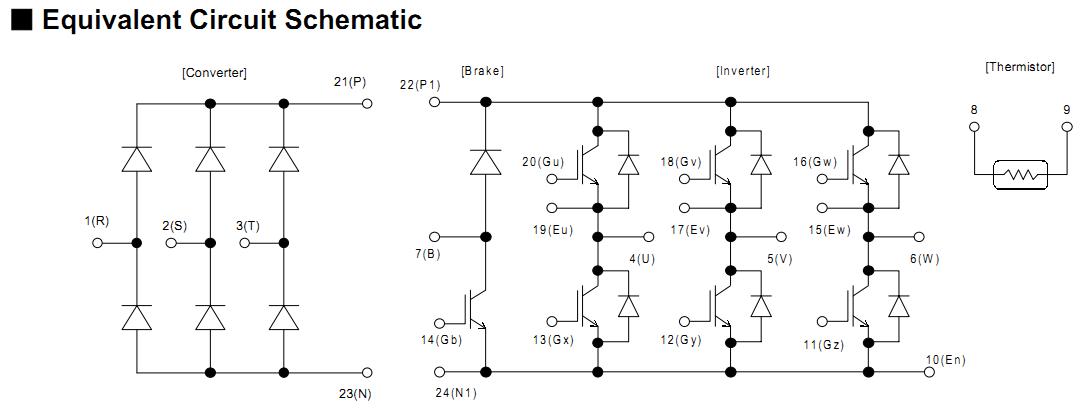

Diagrams
