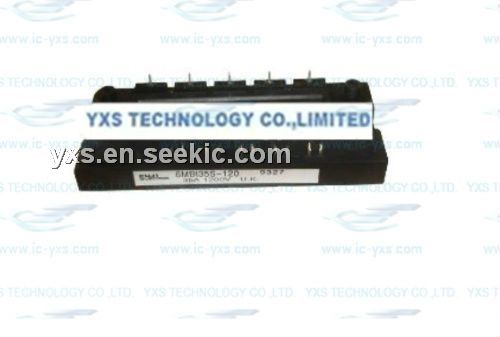

Product Summary
The 6MBI35S-120 is an IGBT module. The applications of the 6MBI35S-120 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
6MBI35S-120 absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1200V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, TC= 25℃, IC: 50A; (4)Collector current, pulse, ICM: 100A; (5)Emitter current, TC= 25℃, IE: 50A; (6)Emitter current, pulse, IEM: 100A; (7)Maximum collector dissipation, TC= 25℃, PC: 280W; (8)Junction temperature, TJ: -40 to +150℃; (9)Storage temperature, Tstg: -40 to +125℃; (10)Isolation voltage, Viso: 2500Vrms.
Features
6MBI35S-120 features: (1)NPT-Technologie; (2)Solderable Package; (3)Square SC SOA at 10 x IC; (4)High Short Circuit Withstand-Capability; (5)Small Temperature Dependence of the Turn-Off Switching Loss; (6)Low Losses And Soft Switching.

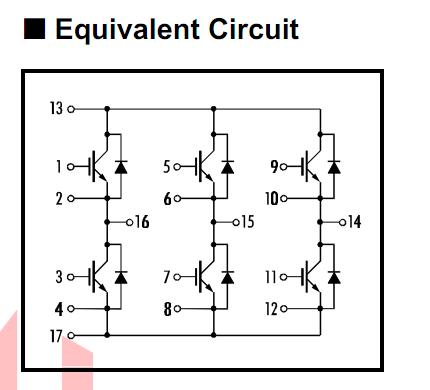

Diagrams
