Product Summary

The 6MBI200FA-060 is an IGBT module.

Parametrics

6MBI200FA-060 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, continuous, IC: 200A; 1ms, ICpulse: 400A; continuous, -IC: 200A; 1ms, -ICpulse: 400A; (4)Power dissipation, PC: 600W; (5)Operating temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 125℃.

Features

6MBI200FA-060 features: (1)Low saturation voltage; (2)Voltage drive; (3)Variety of power capacity series.

Diagrams

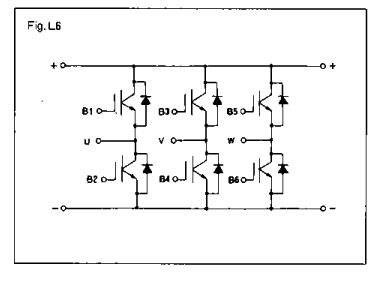

6MBI200FA-060 block diagram
