Product Summary
The 2MBI50N-060 is an IGBT Power module. Its applications include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2MBI50N-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600 V; (2)Gate -Emitter Voltage VGES: ± 20 V; (3)Max. Power Dissipation PC: 250 W; (4)Operating Temperature Tj: +150 ℃; (5)Storage Temperature Tstg: -40 to +125 ℃; (6)Isolation Voltage A.C. 1min. Vis: 2500 V.
Features
2MBI50N-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).

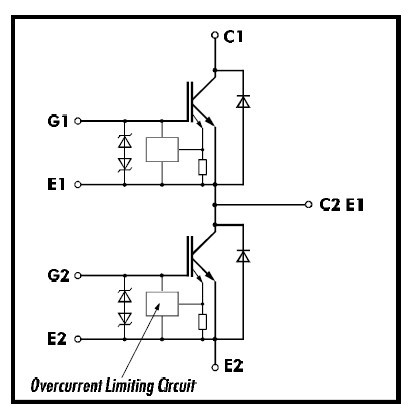

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI50N-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
