Product Summary

The 2MBI200L-060 is an IGBT module. Its applications include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines such as welding machines.

Parametrics

2MBI150L-120 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 150A; at 1ms, IC pulse: 300A; continuous, -IC: 150A; at 1ms, -ICpulse: 300A; (4)max power dissipation, PC: 1200W; (5)operating temperature, Tj: +150℃; (6)storage temperature, Tstg: -40 to +125℃; (7)net weight: 400g; (8)isolation voltage, AC 1min, Visol: 2500V; (9)screw torque, mounting: 35kg,cm; terminals: 35kg.cm.

Features

2MBI150L-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

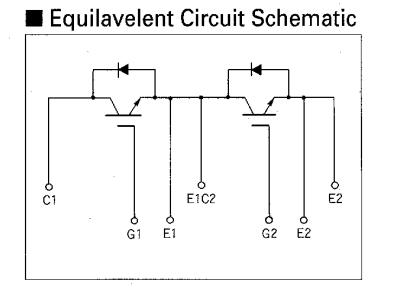

2MBI150L-120 block diagram
