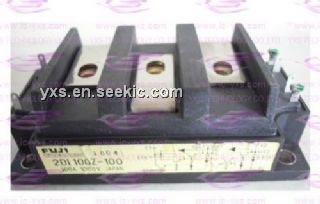

Product Summary

The 2DI100Z-100 is a power transistor module. The applications of the 2DI100Z-100 include high power switching, A.C. motor controls, D.C. motor controls, uninterruptible power supply.

Parametrics

2DI100Z-100 absolute maximum ratings: (1)VCBO: 1000V; (2)VCEO: 1000V; (3)VEBO: 10V; (4)IC: 100A; (5)ICP: 200A; (6)-IC: 100A; (7)IB: 5A; (8)IBP: 10A; (9)PC: one transistor: 800W, two transistors: 1600W; (10)Tj: +150℃; (11)Tstg: -40℃ to +125℃; (12)m: 470g; (13)Viso: 2500V;(14)VCEO(SUS): 450V.

Features

2DI100Z-100 features: (1)High voltage; (2)Including free wheeling diode; (3)Excellent safe operating area; (4)Insulated type.

Diagrams

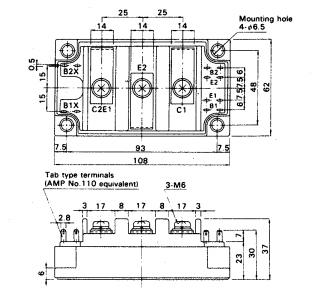

2DI100Z-100 block diagram
