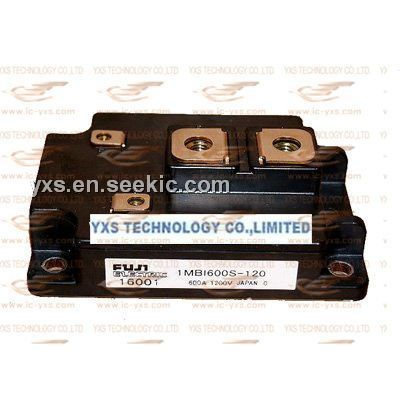

The 1MBI600S-120 is an IGBT module.
Parametrics
1MBI600S-120 absolute maximum rating: (1)Collector emitter Voltage: 1200V; (2)Gate Emitter Voltage: ±20V; (3)Collector Current, DC IC: 900A; 1ms ICP: 1800A; (4)Collector Power dissipation, Pc: 4150W; (5)junction Temperature, Tj: 150℃; (6)Storage Temperature range: -40 to 125℃; (7) Isolation Voltage: 2500V; (8) screw torque: 4.5 N·m.
Features
1MBI600S-120 features: (1)Collector current, ICES: 2.0Ma; (2)Gate-emitter leakage current, IGES: 1.6μA; (3)Gate-emitter voltage, VGE: 5.5 to 8.5V; (4)Collector-emitter saturation voltage, VCE: 2.3 to 2.6V.

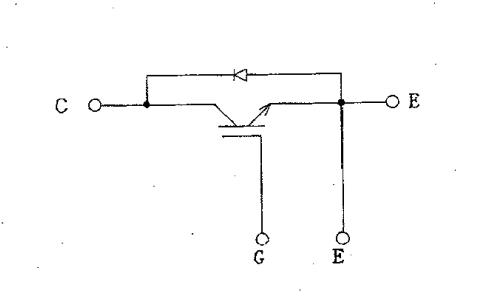

Diagrams
