Product Summary

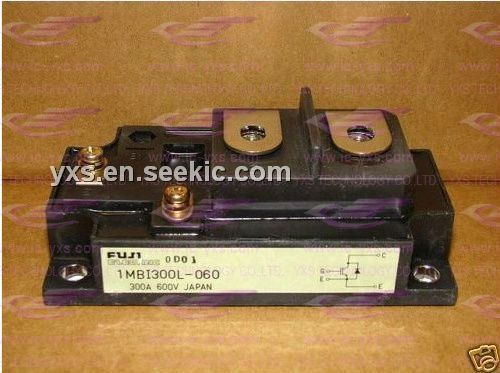

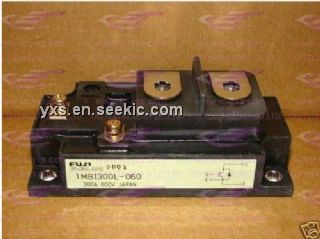

The 1MBI300L-060 is an IGBT module. The applications of the 1MBI300L-060 include general purpose inverter, uninterruptible power supply, AC·DC servo drive amplifier, switching power supplies for welding machine.
Parametrics
1MBI300L-060 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 300A; (4)IC pulse: 600A; (5)-IC: 300A; (6)-IC pulse: 600A; (7)Pc: 1200W; (8)Tj: 150℃; (9)Tstg: -40 to 125℃; (10)Visol: 2500V.
Features
1MBI300L-060 features: (1)High speed switching; (2)Low saturation voltage; (3)High input impedance; (4)Module packaging.

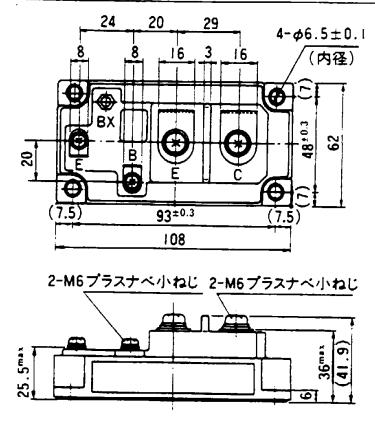

Diagrams
