Product Summary

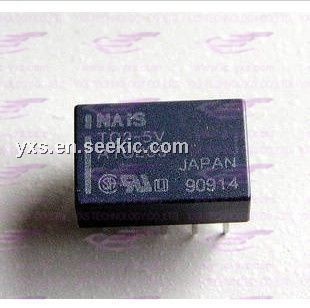

The TQ2-5V is designed as a low profile 2 form C relay.

Parametrics

TQ2-5V absolute maximum ratings: (1)FCC surge voltage between open contacts: 1500 V; (2)Operate time: Max. 3 ms (Approx. 2 ms); (3)Release time (Reset time): Max. 3 ms (Approx. 1 ms); (4)M.B.B. time: Min. 0.01 ms.; (5)Temperature rise: Max. 50°C; (6)Max. switching current: 1 A; (7)Min. switching capacity: 0.01 mA 10 mV DC.

Features

TQ2-5V features: (1)High sensitivity: 2 Form C: 140 mW power consumption (single side stable type) or 4 Form C: 280 mW power consumption (single side stable type); (2)Surge voltage withstand: 1500 V FCC Part 68; (3)Sealed construction allows automatic washing; (4)Self-clinching terminal also available; (5)M.B.B. contact types available.

Diagrams

TQ2-5V dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TQ2-5V
TQ2-5V

Panasonic Electric Works

Low Signal Relays - PCB 1A 5VDC DPDT NON-LATCHING PCB

Data Sheet

0-1: $2.01
1-25: $1.80
25-50: $1.63
50-100: $1.37
TQ2-5V-3
TQ2-5V-3

Panasonic Electric Works

Low Signal Relays - PCB 2 Form A 5V 30VDC PCB Terminal

Data Sheet

0-1: $1.71
1-25: $1.54
25-50: $1.37
50-100: $1.23
