Product Summary

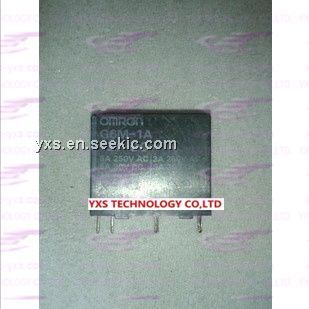

The G6M-1A-12V is a PCB power relay.
Parametrics
G6M-1A-12V absolute maximum ratings: (1)Rated voltage: 24 VDC; (2)Rated current: 24 mA; (3)Coil resistance: 4,800 Ω; (4)Power consumption: 120 mW.
Features
G6M-1A-12V features: (1)Slim 5-mm width, and miniature size; (2)Reduced mounting area ideal for high-density mounting; (3)Highly efficient magnetic circuit for high sensitivity (40% higher than the G6D, with power consumption of 120 mW); (4)Satisfies EN61131-2 and EN61010 requirements; (5)SIL (single-in-line)terminal pitch; (6)UL recognized / CSA certified. VDE approval pending; (7)RoHS Compliant.
Diagrams
