Product Summary
The RALD5W-K is designed as a 2 poles-1 to 2 A (for signal switching) miniature relay.
Parametrics
RALD5W-K absolute maximum ratings: (1)Contact Arrangement: 2 form C (DPDT); (2)Contact material: Gold overlay silver alloy; (3)Maximum Carrying Current: 2 A; (4)Maximum Switching Power: 60 VA/24 W; (5)Resistance (initial): Maximum 100 mΩ (at 1 A 6 VDC); (6)Operate (at nominal voltage): Maximum 6 ms; (7)Release time (at nomi. Volt.): 4 ms.
Features
RALD5W-K features: (1)Ultra high sensitivity; (2)High reliability-bifurcated contacts; (3)Conforms to FCC rules and regulations Part 68: dielectric strength 1,500 VAC between coil and contacts, and surge strength 1,500 V; (4)UL, CSA recognized; (5)Wide operating range; (6)DIL pitch terminals; (7)Plastic sealed type; (8)Latching type available; (9)Dial-pulse relay available.

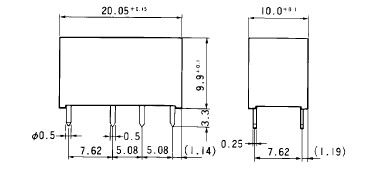

Diagrams
