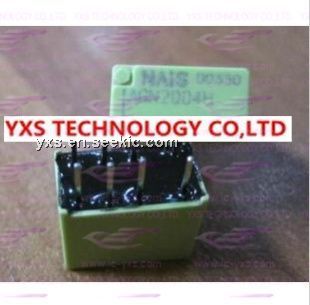

Product Summary

The agn2004h is an ultra-small package slim polarized relay. Typical applications of the agn2004h include: Telephone exchange, transmission equipment,Communications devices, Measurement devices, Home appliances, and audio/visual equipment and Handheld and portable products.

Parametrics

agn2004h absolute maximum ratings: (1) Nominal switching capacity (resistive load) : 1A 30V DC 0.3A 125V AC; (2) Max. switching power (resistive load) : 30W, 37.5V A; (3) Max. switching voltage: 110VDC, 125V AC; (4) Max. switching current: 1A; (5) Min. switching capacity: 10μA 10 mV DC; (6) Nominal operating power: Single side stable:140mW (1.5 to 12 V DC) , 1 coil latching: 100mW (1.5 to 12 V DC) , 120mW (24V DC) .

Features

agn2004h features: (1) Compact slim body saves space; (2) Outstanding surge resistance; (3) The use of twin crossbar contacts ensures high contact reliability; (4) Increased packaging density; (5) Nominal operating power: 140mW; (6) Outstanding vibration and shock resistance.

Diagrams

AGN2004H Dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AGN2004H
AGN2004H
Panasonic Electric Works
Low Signal Relays - PCB 1A 4.5VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.15
1-25: $2.08
25-50: $1.97
50-100: $1.76
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AGN20006
AGN20006
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 1 Form A 30VDC PCB 6V
Data Sheet
0-1: $2.34
1-25: $2.08
25-50: $1.97
50-100: $1.76
AGN20012
AGN20012
Panasonic Electric Works
Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.15
1-25: $2.08
25-50: $1.96
50-100: $1.76
AGN2004H
AGN2004H
Panasonic Electric Works
Low Signal Relays - PCB 1A 4.5VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.15
1-25: $2.08
25-50: $1.97
50-100: $1.76
AGN200A06
AGN200A06
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 1 Form A 30VDC SMD 6V
Data Sheet
0-1: $2.41
1-25: $2.21
25-50: $1.97
50-100: $1.67
AGN200A12
AGN200A12
Panasonic Electric Works
Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING SMD
Data Sheet
0-1: $1.82
1-25: $1.76
25-50: $1.72
50-100: $1.66
AGN200S09
AGN200S09
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 1 Form A 30VDC SMD 9V
Data Sheet
0-1: $2.64
1-25: $2.42
25-50: $2.16
50-100: $1.84
