Product Summary

The P2CF-11 is a solid-state power off-delay timer.

Parametrics

P2CF-11 absolute maximum ratings: (1)Accuracy of operating time: ±0.3% FS max. (±0.3% FS ±10 ms in ranges of 0.6 and 1.2 s); (2)Setting error: ±5% FS ±0.05 s max.; (3)Insulation resistance: 100 MΩ min. (at 500 VDC); (4)Ambient temperature Operating:–10°C to 55°C (with no icing); (5)Ambient humidity Operating: 35% to 85%; (6)Case color Light Gray (Munsell 5Y7/1).

Features

P2CF-11 features: (1)Long power OFF-delay times; S-series: up to 12 seconds, M-series: up to 12 minutes; (2)Models with forced-reset input are available; (3)11-pin and 8-pin models are available.

Diagrams

P2CF-11 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

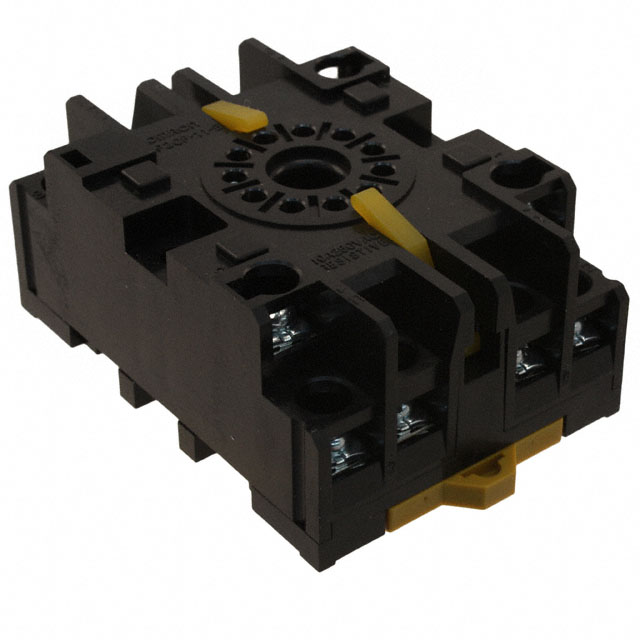

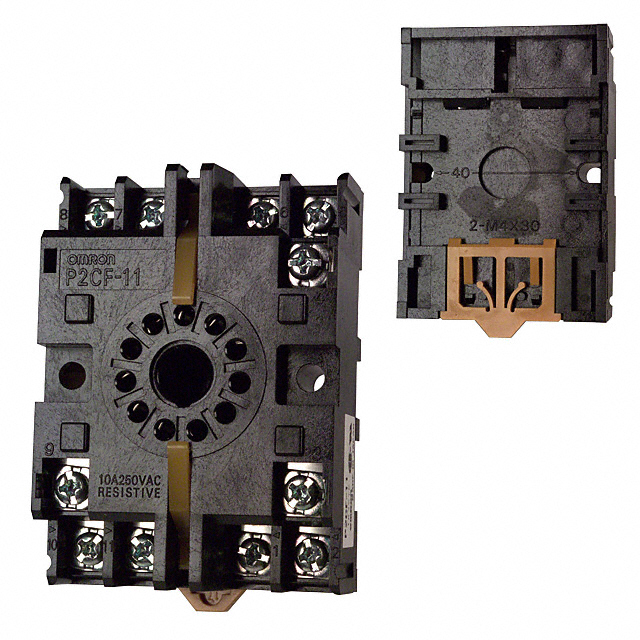

P2CF-11
P2CF-11

Omron Industrial

Relay Sockets & Hardware 11-PIN RND SOCKET

Data Sheet

0-1: $7.90
1-5: $7.55
5-10: $7.34
10-25: $7.04
P2CF-11-E
P2CF-11-E

Omron Industrial

Relay Sockets & Hardware Front-Conn Socket w/Finger Protection

Data Sheet

0-1: $7.25
1-5: $7.04
5-10: $6.69
10-25: $6.35
