Product Summary

The MS4SA-AP100-240VAC is a time relay.

Parametrics

MS4SA-AP100-240VAC absolute maximum ratings: (1)Contact load: 5A; (2)Contact switching current: 5A; (3)Contact switching voltage: 250V; (4)Rated current: 5A; (5)Rated voltage: 100-240VAC; (6)Coil Power Supply: 100-240VAC.

Features

MS4SA-AP100-240VAC features: (1)Coil power: low power; (2)Contact form: two open two closed; (3)Protection features: Plastic.

Diagrams

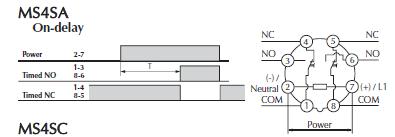

MS4SA-AP100-240VAC block diagram
