Product Summary

The K8AB-VW3 is a kind of Single-phase Current Relay ideal for current monitoring for industrial facilities and equipment.

Parametrics

K8AB-VW3 specifications: (1)Operating value: 100% operation at set value; (2)Reset value setting range (HYS.): 5% to 50% of operating value; (3)Reset method: Manual reset/automatic reset (switchable); (4)Operating time setting range (T): 0.1 to 30 s; (5)Startup lock time setting range (LOCK): 0 to 30 s; (6)Indicators Power (PWR): Green, Relay output (RY): Yellow, Alarm outputs (ALM): Red; (7)Output relays: One SPDT relay (NO/NC switched using DIP switch.).

Features

K8AB-VW3 features: (1)Monitor for overcurrents or undercurrents; (2)Manual resetting and automatically resetting supported by one Relay; (3)Startup lock and operating time can be set separately; (4)One SPDT output relay, 6 A at 250 VAC (resistive load); (5)Output relay can be switched between normally open and normally closed; (6)Process control signal (4 to 20 mA) and commercial CT input (0 to 1 A or 0 to 5 A) supported; (7)Output status can be monitored using LED indicator; (8)Inputs are isolated from the power supply.

Diagrams

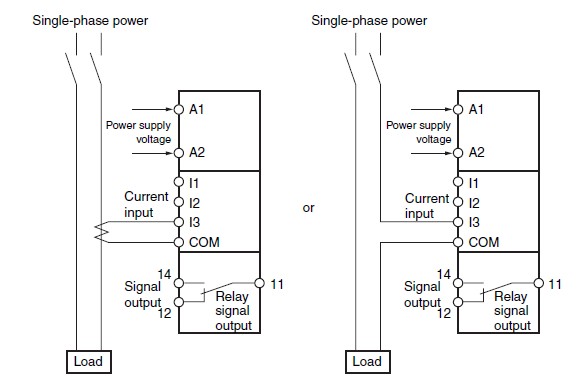

K8AB-VW3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
K8AB-VW3 100/115VAC
K8AB-VW3 100/115VAC
Omron Industrial
General Purpose / Industrial Relays 150-600V 1-PH VOLT WINDOW
Data Sheet
0-1: $107.72
1-5: $98.74
5-10: $91.15
10-25: $84.64
K8AB-VW3 200/230VAC
K8AB-VW3 200/230VAC
Omron Industrial
General Purpose / Industrial Relays 150-600V 1h volt Ry window com
Data Sheet
0-1: $85.27
1-10: $79.66
10-25: $77.13
25-50: $75.73
K8AB-VW3 24VDC
K8AB-VW3 24VDC
Omron Industrial
General Purpose / Industrial Relays Use K8ABVW3 24VAC/DC
Data Sheet
0-1: $98.89
1-5: $90.87
5-10: $83.66
10-25: $77.99
K8AB-VW3 24VAC/DC
K8AB-VW3 24VAC/DC

CURRENT MON VOLT RELAY 1PH 2SPDT
Data Sheet
0-1: $99.82
