Product Summary

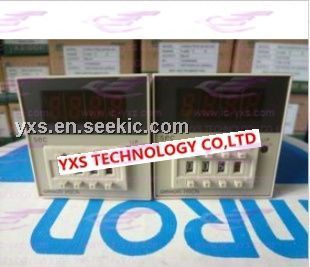

The H5CN-YBN is a Digital Timer which is minature DIN-sized quartz timer with abundant series versions.
Parametrics
H5CN-YBN absolute maximum ratings: (1)Rated supply voltage 100 to 240 VAC (50/60 Hz), 12 to 48 VDC (permissible ripple: 20% max.), 12 to 48 VDC (permissible ripple: 20% max.); (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Power consumption: Approx. 12 VA at 240 VAC 50 Hz, Approx. 2.5 W at 48 VDC, Approx. 2.5 W at 48 VDC; (4)Reset by power-OFF: min. power OFF time: 0.5 s; (5)External reset or gate (common to contact and solid-state inputs): min. reset input signal width: 0.02 s; residual voltage: 2 V max.; (6)Control outputs SPDT: 3 A at 250 VAC, resistive load (cosΦ = 1), Open collector: 100 mA max. at 30 VDC max.; (7)Ambient temperature: Operating –10℃ to 55℃ (with no icing or condensation), Storage –25℃ to 65℃ (with no icing or condensation); (8)Ambient humidity Operating: 35% to 85%; (9)Rated time: 0.1 to 999.9 s.
Features
H5CN-YBN features: (1)Output mode: N mode (Power ON-delay); (2)Selection of elapsed time indication, remaining time indication, contact output, and solid-state output types to suit requirements; (3)Power supply freely selectable within a range of 100 to 240 VAC, as well as 12 to 48 VDC; (4)Certified for UL and CSA safety standards.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H5CN-YBN AC100-240 |
|
TIMER DGTL 4DIGIT DISPLAY 8PIN |
Data Sheet |
|
|
||||||
|
H5CN-YBN DC12-48 |
|
TIMER DGTL 4DIGIT DISPLAY 8PIN |
Data Sheet |
|
|
||||||
