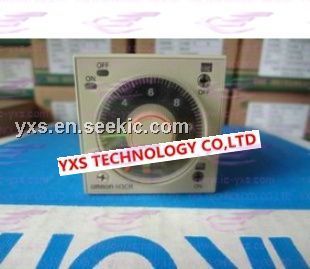

Product Summary

The H3CR-F8N is a solid-state twin timer.

Parametrics

H3CR-F8N absolute maximum ratings: (1)Rated supply voltage: 100 to 240 VAC (50/60 Hz),12 VDC, 24 VAC/DC (50/60 Hz), 48 to 125 VDC; (2)Operating voltage range: 85% to 110% of rated supply voltage; 90% to 110% with 12-VDC models; (3)Power reset: Minimum power-opening time: 0.1 s; (4)Power consumption: 100 to 240 VAC: approx. 10 VA; 12 VDC: approx. 1 W; 24 VAC/DC: approx. 2 VA (AC), approx. 1 W (DC); 48 to 125 VDC: approx. 1.5 W; (5)Control outputs: Contact output: 5 A at 250 VAC, resistive load (cos = 1); (6)Ambient humidity: Operating: 35% to 85%; (7)Ambient temperature (Operating): –10°C to 55°C (with no icing).

Features

H3CR-F8N features: (1)Wide power supply ranges of 100 to 240 VAC and 48 to 125 VDC respectively; (2)Independent ON- and OFF-time settings. Furthermore, combinations of long ON- or OFF-time and short OFF- or ON-time settings are possible; (3)Fourteen time ranges from 0.05 s to 30 h or from 1.2 s to 300 h depending on the model to be used; (4)Models with a flicker ON start or flicker OFF start are available; (5)Easy sequence checks through instantaneous outputs for a zero set value at any time range; (6)Only 80 mm long when panel-mounted with a socket; (7)11-pin and 8-pin models are available.

Diagrams

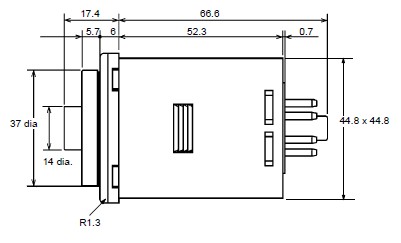

H3CR-F8N dimension figure
