Product Summary

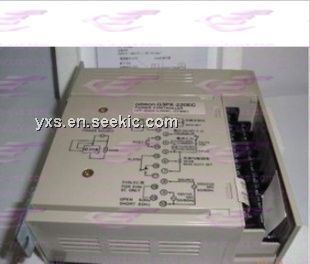

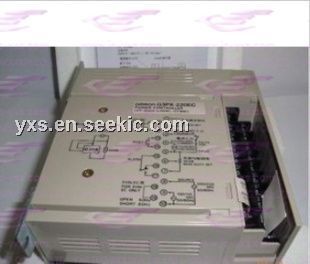

The G3PX-220EC is a single-phase solid state relay.
Parametrics
G3PX-220EC absolute maximum ratings: (1)Output ON voltage drop: 1.6 V (RMS)max.; (2)Leakage current: 10 mA max. (at 200 VAC); (3)Insulation resistance: 100 MΩ min. (at 500 VDC); (4)Dielectric strength: 2,500 VAC, 50/60 Hz for 1 min; (5)Vibration resistance: 10 to 55 to10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)(Mounted to DIN track); (6)Shock resistance Destruction: 294 m/s2 (Mounted to DIN track); (7)Ambient storage temperature: -30 to 100°C (with no icing or condensation); (8)Ambient operating temperature: -30 to 80°C (with no icing or condensation).
Features
G3PX-220EC features: (1)Snubber circuit provides excellent short-term surge absorption; (2)15A and 25A models have slim 22.5mm width; (3)Zero cross or “fast turn on” models; (4)DIN track or panel mounting possible; (5)LED indicator standard on all single phase models; (6)UL, CSA and TV approved; (7)RoHS compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G3PX-220EC-CT10 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
G3PX-220EC-CT10 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
Negotiable |
|
||||||||||||
|
G3PX-220EH-CT03 |
Omron Industrial |
Solid State Relays POWER CONTROLLER |
Data Sheet |
|
|
||||||||||||
|
G3PX-220EH-CT10 |
Omron Industrial |
Solid State Relays POWER CONTROLLER |
Data Sheet |
|
|
||||||||||||
|
G3PX-220EHN-CT03 |
Omron Industrial |
Solid State Relays POWER CONTROLLER |
Data Sheet |
|
|
||||||||||||
|
G3PX-220EUN AC100/230 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
|
G3PX-240EC-CT03 |
|
POWER CTLR 40A 1PH CC 30CM LEAD |
Data Sheet |
|
|
||||||||||||
