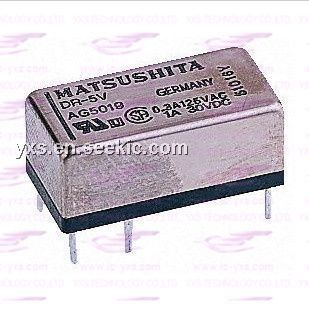

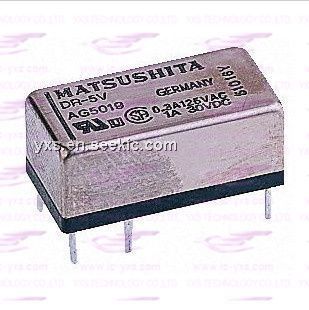

The DR-5V is a kind of highly reliable miniature DIP relay.Typical applications include: Telecommunications equipment, alarm devices, machine tools, NC machines, automatic warehouse control, conveyors, air-conditioners, pressing machines, textile machinery, elevators, control panels, pin-board programmers, parking meters, industrial robots, detectors, annunciators, optical instruments, business machine, time recorders, cash registers, copiers, vending machines, medical equipment.
Parametrics
DR-5V absolute maximum ratings: (1)Arrangement: 1 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 60 mW; (3)Nominal switching capacity: 1 A 20 VDC, 0.3 A 110 VAC; (4)Max. switching power: 20 W, 33 VA; (5)Max. switching voltage: 110 V AC, 30 V DC; (6)Max. switching current: AC 0.3 A, DC 1 A.
Features
DR-5V features: (1)High breakdown voltage: Between open contacts: 750 Vrms; Between contacts and coil: 1500 Vrms; (2)Surge voltage withstand: 1500 V (Based on part 68, FCC standard); (3)1 coil and 2 coil latching types available; (4)High sensitivity; (5)High contact pressure; (6)Miniature size and low profile: standing only 8.6 mm (.339 inches); (7)including stand-offs on headers; (8)High speed Operate time: Approx. 1 ms.

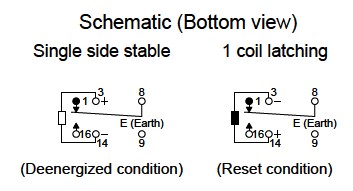

Diagrams
