Product Summary

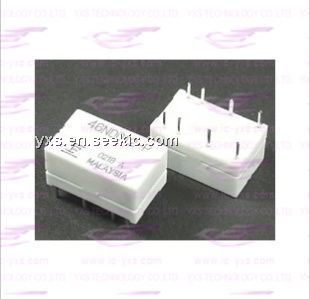

The 46ND012-P is a miniature relay.

Parametrics

46ND012-P absolute maximum ratings: (1)nominal voltage: 12VDC; (2)coil resistance (±10%): 720Ω; (3)nominal current (at nominal voltage) approx.: 17mA; (4)must operate voltage: 75% max. of nominal voltage; (5)must release voltage: 5% min. of nominal voltage; (6)nominal power: approx. 200 mW (at nominal voltage); (7)operate power: approx. 112mW max.; (8)coil temperature rise: approx. 30 deg (at nominal voltage).

Features

46ND012-P features: (1)Miniature size: About 50% smaller in volume compared with the FBR240 series used mainly in communication equipment; (2)High surge voltage: 2,500 V minimum of surge strength (Bellcore standard), and 1,500 VAC minimum of dielectric strength between coil and contact (-15, -16 type); (3)Low power consumption: 85 mW of operate power (150 mW of nominal power consumption) by built-in permanent magnet; (4)Shipping tube package; (5)RoHS compliant since date code: 0433A.

Diagrams

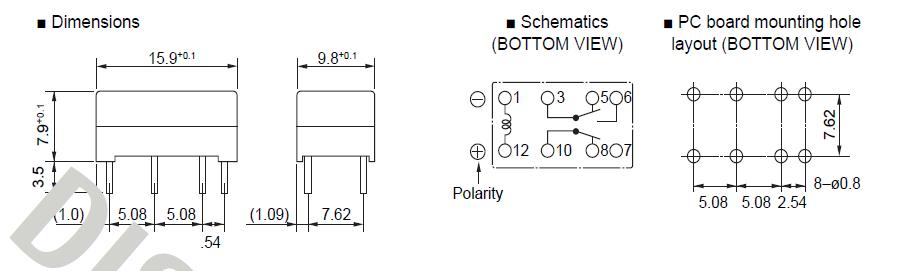

46ND012-P package dimensions
