Product Summary
The N116B6-L07 is a 5 bit TTL-compatible input, digital-to-analog (DAC) programmable, syn-chronous buck converter with dual LDOs controller designed specifically to power the Pentium, II as well as the next generation of P6 family or other high performance core logic in desktop personal computer and file servers CPU applications. The applications of the N116B6-L07 include Powering Pentium II, III or Deschutes, K6 and other advanced processor, High power DC to DC controller with triple output supplies.
Parametrics
N116B6-L07 absolute maximum ratings: (1)VCC to GND: - 0.3V to 7V; (2)BST to GND: -0.3V to 15V; (3)Thermal Resistance Junction to Case: 25 ℃; (4)Thermal Resistance Junction to Ambient: 80 ℃; (5)Operating Temperature Range, TA: 0 to 70 ℃; (6)Operating Junction Temperature Range, TJ: 0 to 125 ℃; (7)Storage Temperature Range, TSTG: -65 to 150 ℃; (8)Lead Temperature, TLEAD (Soldering, 10 Seconds): 300 ℃.
Features
N116B6-L07 features: (1)Synchronous operation with high efficiency; (2)TTL-compatible 5 bit DAC, output voltage selection from 1.3V to 3.5V programmable; (3)High current totem pole output, up to 2 A for direct driving of the external N-Channel power MOSFETs.; (4)200 KHz fixed frequency internal oscillator; (5)Fast transient response; (6)Provides 2 regulated voltages, 1.5V and 2.5V for linear section; (7)Power-Good output voltage monitor; (8)Over-Voltage and Over-Current protection; (9)Logic level enable input; (10)High performance and low cost solution.

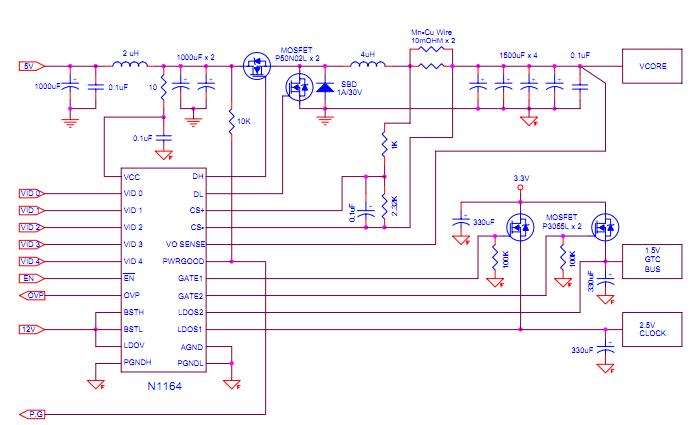

Diagrams
