Product Summary

The LTN133W1-L01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 13.3" contains 1,280 × 800 pixels and can display up to 262,144 colors. 6 O’clock direction is the Optimum viewing angle. The application of the LTN133W1-L01 includes Notebook PC.

Parametrics

LTN133W1-L01 absolute maximum ratings: (1)Power Supply Voltage, VDD: VDD-0.3 to +0.3V; (2)Logic Input Voltage, VDD: VDD-0.3 to +0.3V; (3)Lamp Current, IL: 2.0 to 7.0 mArms; (4)Lamp frequency, FL: 40 to 80 kHz.

Features

LTN133W1-L01 features: (1)High contrast ratio, high aperture structure; (2)1280 x 800 pixels resolution; (3)Low power consumption; (4)Fast Response; (5)Single CCFL; (6)DE(Data enable) only mode; (7)3.3V LVDS Interface; (8)Onboard EEDID chip.

Diagrams

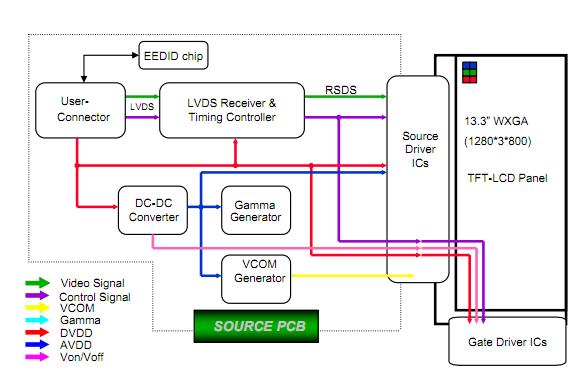

LTN133W1-L01 block diagram
