Product Summary
The LTN140AT04-G01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. The LTN140AT04-G01 is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 14.1" contains 1400 × 1050 pixels and can display up to 262,144 colors. 6 O’clock direction is the Optimum viewing angle. The applications of the LTN140AT04-G01 include Notebook PC and desktop monitors, Display terminals for AV application products, Monitors for Industrial machine.
Parametrics
LTN140AT04-G01 absolute maximum ratings: (1)Lamp Current, IL: 3.0 to 6.0 mArms; (2)Lamp frequency, FL: 40 to 680 kHz.
Features
LTN140AT04-G01 features: (1)Thin and light weight; (2)High contrast ratio; (3)SXGA-Plus((1400x1050) pixels) resolution; (4)Low power consumption; (5)DE (Data enable) only mode.

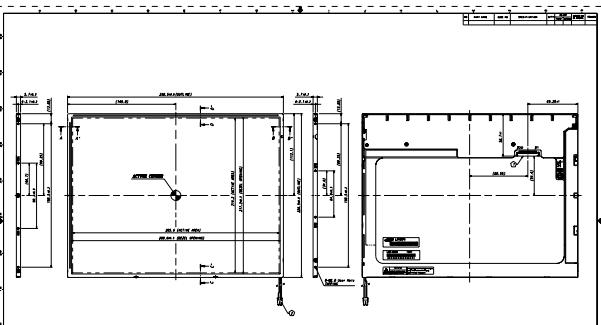

Diagrams
